MaxLight Projection Solution
MPC-500R
Rotating Flip-Out UST Laser TV Cabinet
A premium fully concealed laser TV cabinet designed around a unique central rotating flip-out mechanism. The MPC-500R integrates the projector and floor rising screen into one refined furniture system while supporting ultra short throw projectors from 0.16:1 throw ratio and above.
0.16:1+ UST Support
Compatible with ultra short throw projectors from 0.16:1 throw ratio and above.
Rotating Flip-Out Design
Not a simple stretch-out tray. The central mechanism rotates the projector into position.

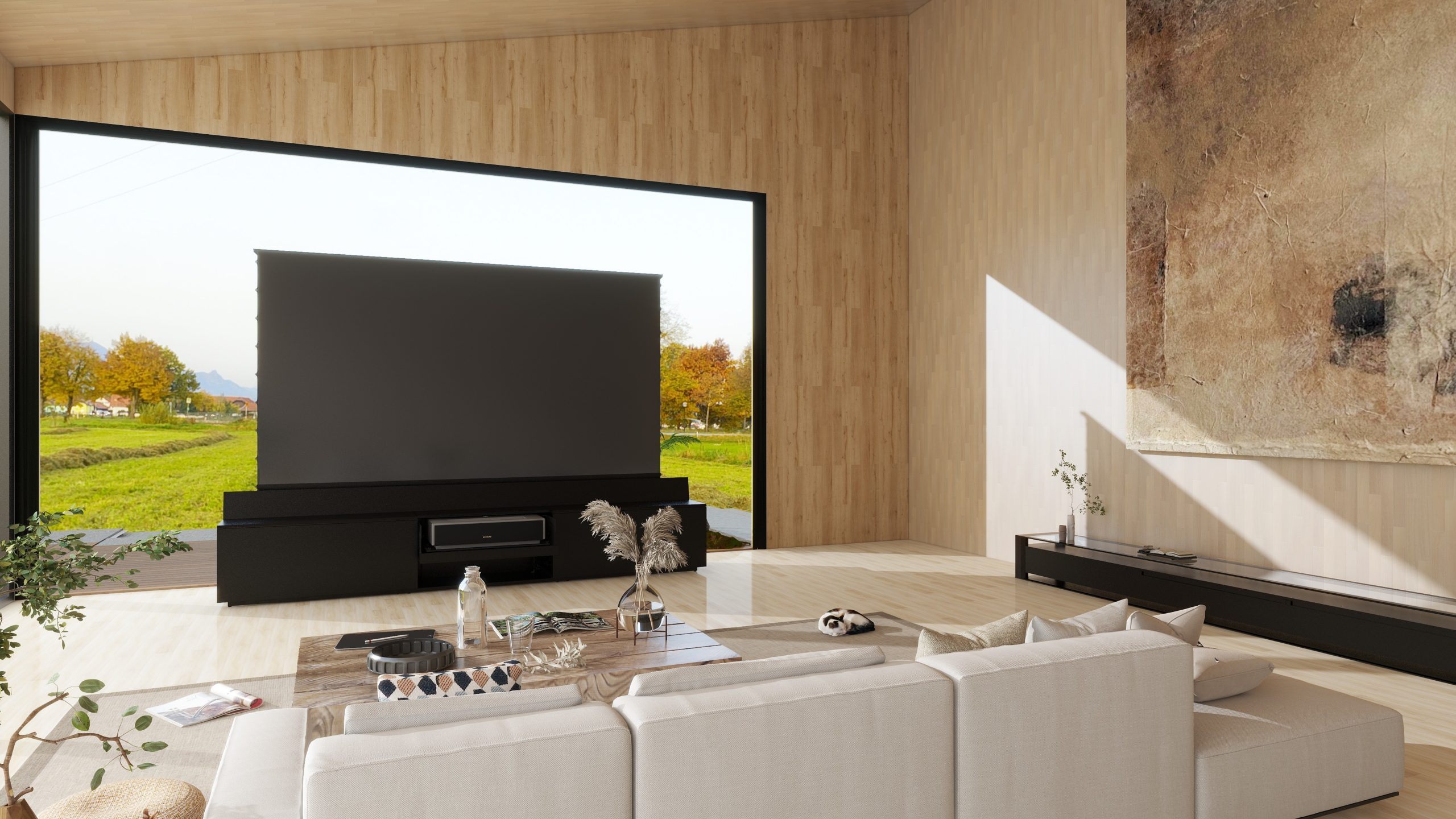

Fully Concealed
Projector, floor rising screen and cabling are hidden when the cabinet is closed.
Synchronised One-Touch Operation
Projector, centre section, screen cover and floor rising screen move as one system.
Purpose-Built MaxRemo App
iOS and Android companion app for fine adjustment and system control.
Modular & Customisable
100” and 120” standard versions, with extended side cabinets and finish options available.

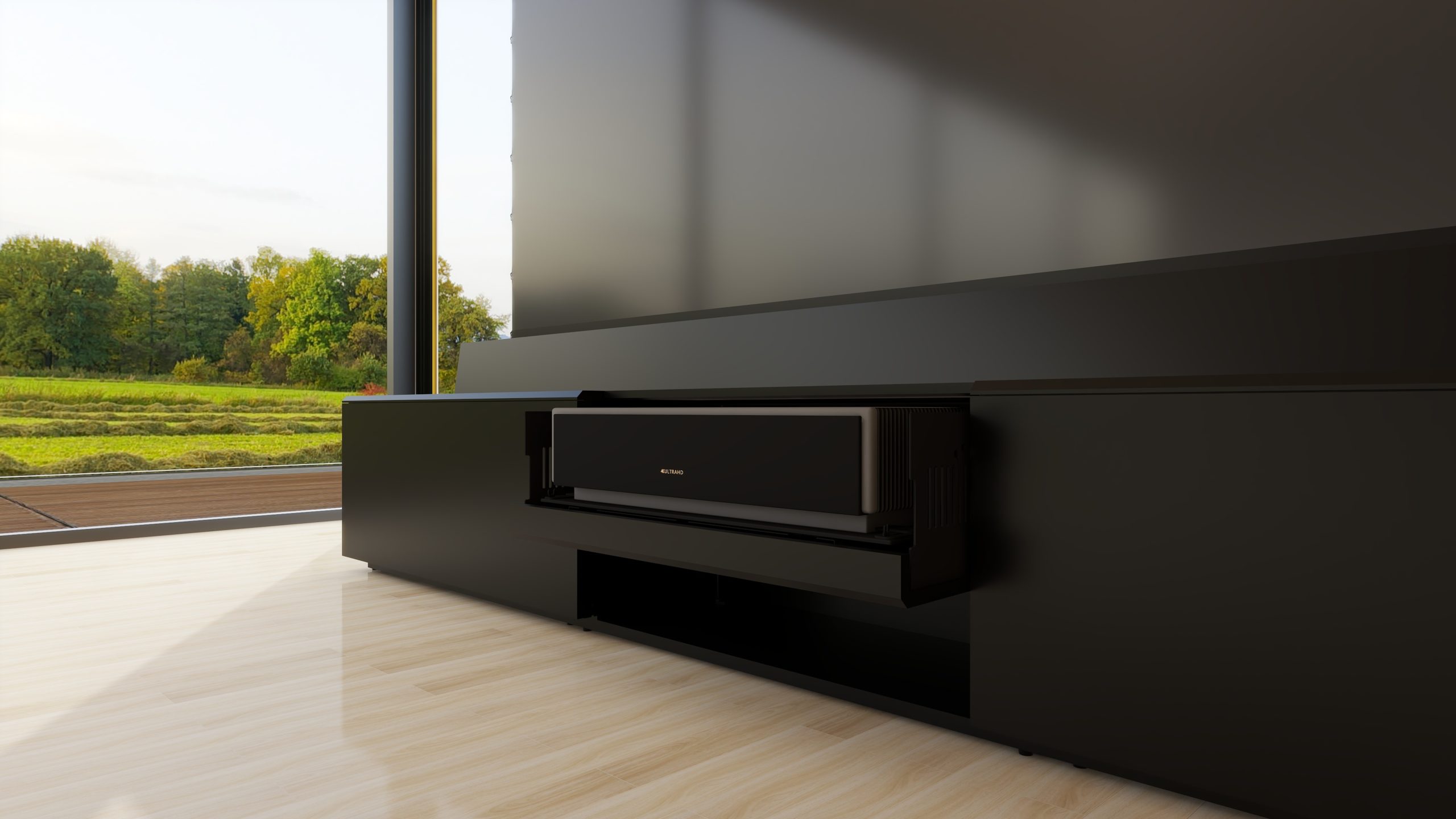

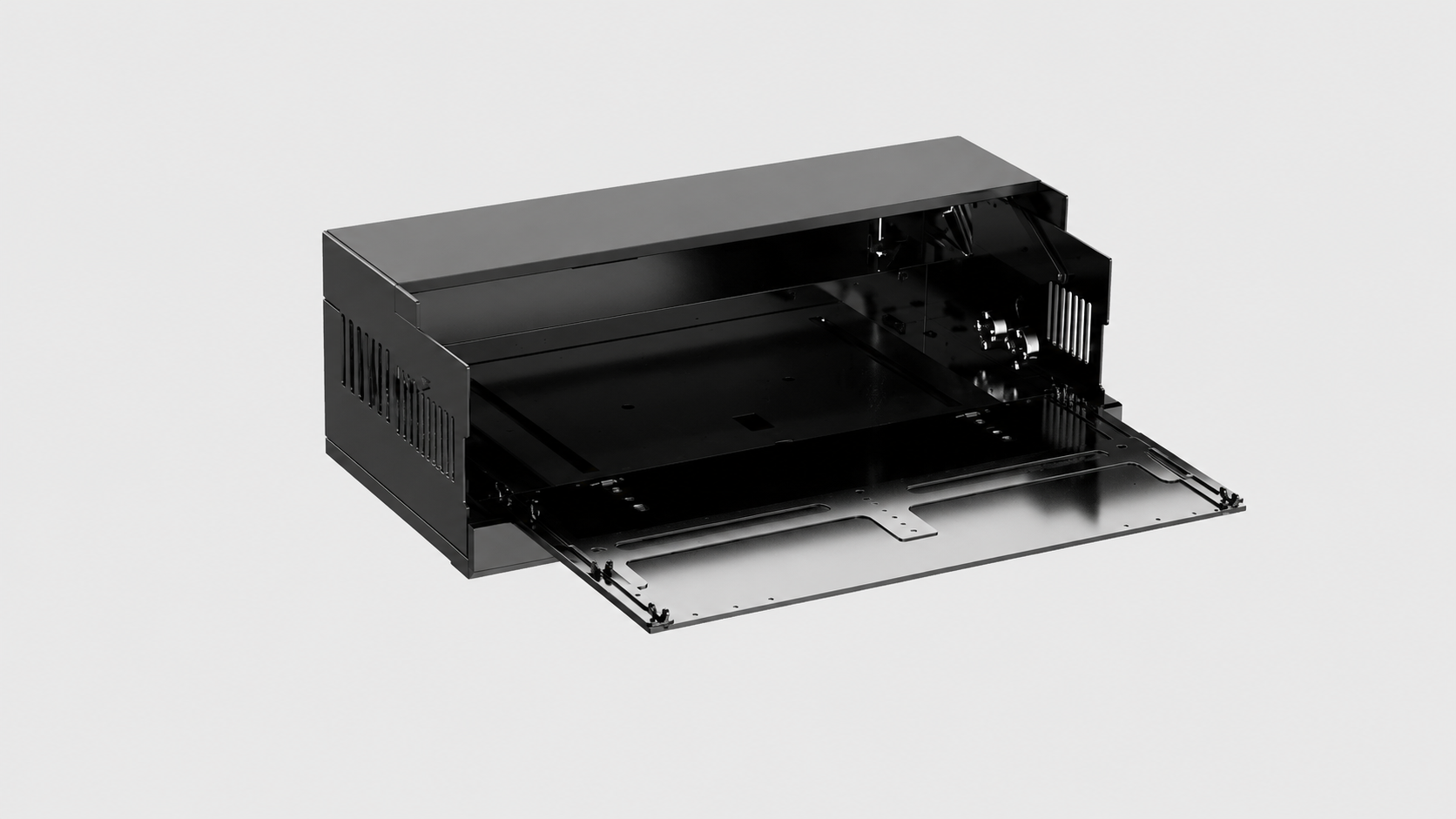

Central Rotating Flip-Out Mechanism
Designed to Conceal. Engineered to Reveal.
Unlike ordinary stretch-out projector cabinets, the MPC-500R rotates the centre projector section into position. This distinctive design is the key to its ultra-short-distance compatibility, fully concealed appearance and compact cabinet depth.
Short throw compatibility: supports UST projectors from 0.16:1 throw ratio and above.
Compact depth: the mechanism helps integrate the projection system into a 500mm-depth cabinet body.
Ventilation: side-to-side airflow supports heat dissipation for high-power UST laser projectors.

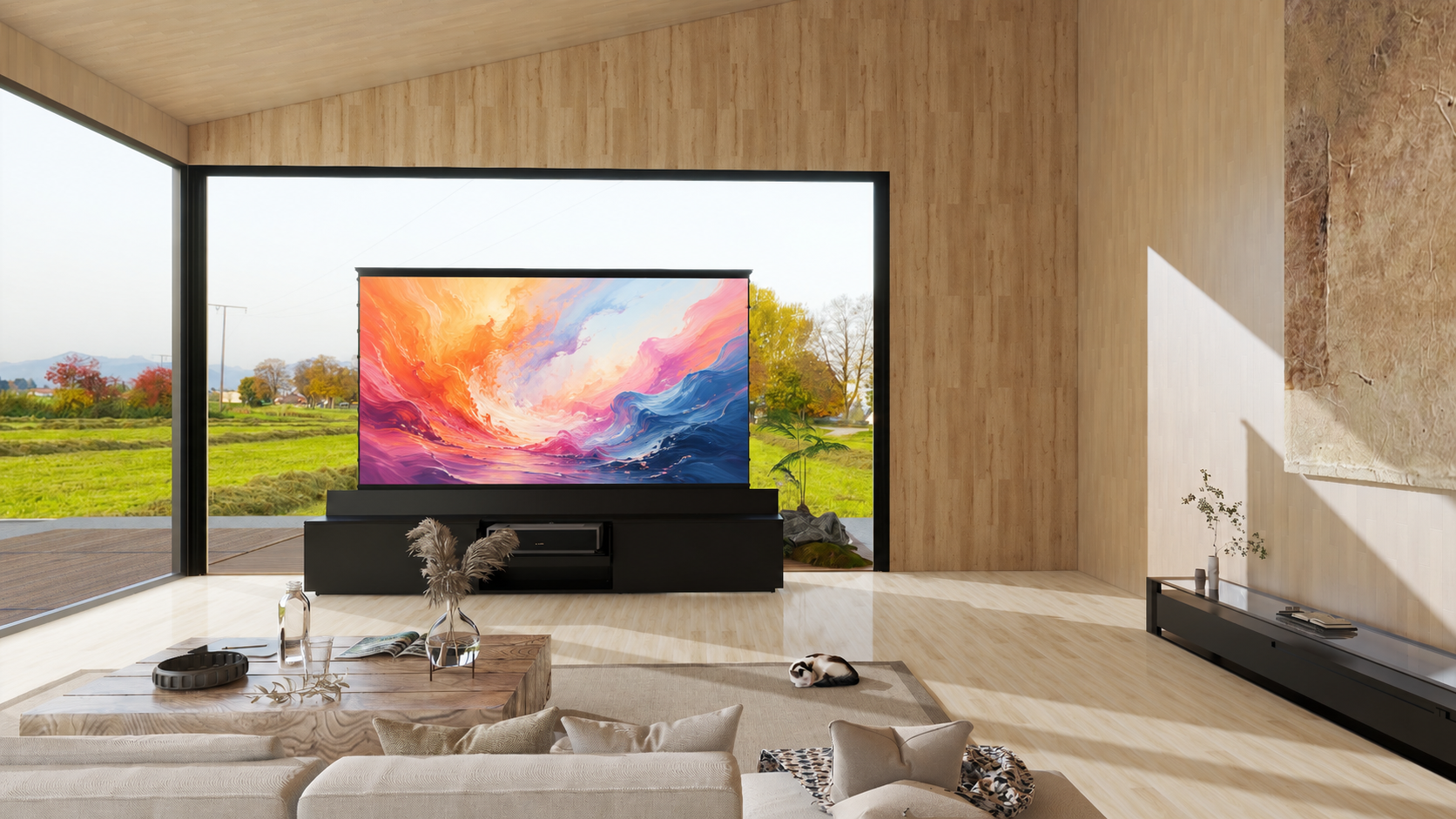

Synchronised One-Touch System
When the projector powers on, the cabinet opens in sequence: the centre projector section rotates into position, the screen cover opens, and the floor rising screen elevates. When the projector powers off, the entire process reverses and closes with equal precision.
Purpose-Built Companion App

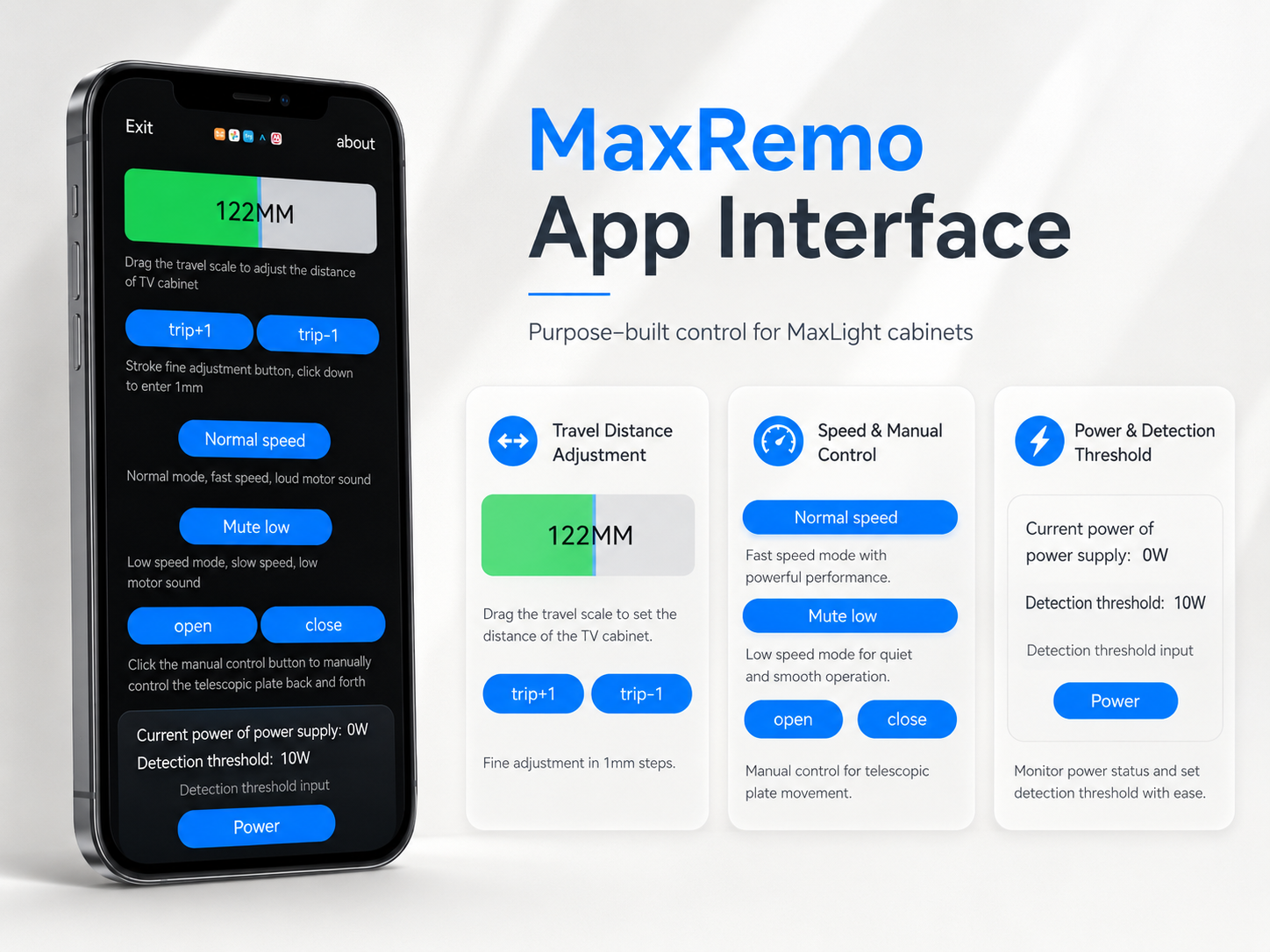

MaxRemo App Control
MaxRemo is purpose-built for MaxLight projector cabinets. It connects to the cabinet by Bluetooth and gives users direct control over setup, movement and power detection settings.
Travel distance adjustment
Set the centre projector section travel distance with slider control and 1mm fine adjustment.
Manual open / close
Operate the cabinet manually when needed, independent of the automatic sequence.
Power detection threshold
Monitor projector power and adjust the trigger threshold for current and future projector models.
Freedom, Control & Flexibility
Future-Proof Projector Compatibility
A projector cabinet is a long-term investment. The MPC-500R does not restrict customers to one specific projector model. The adjustable power detection threshold gives users confidence when upgrading to another UST projector in the future.

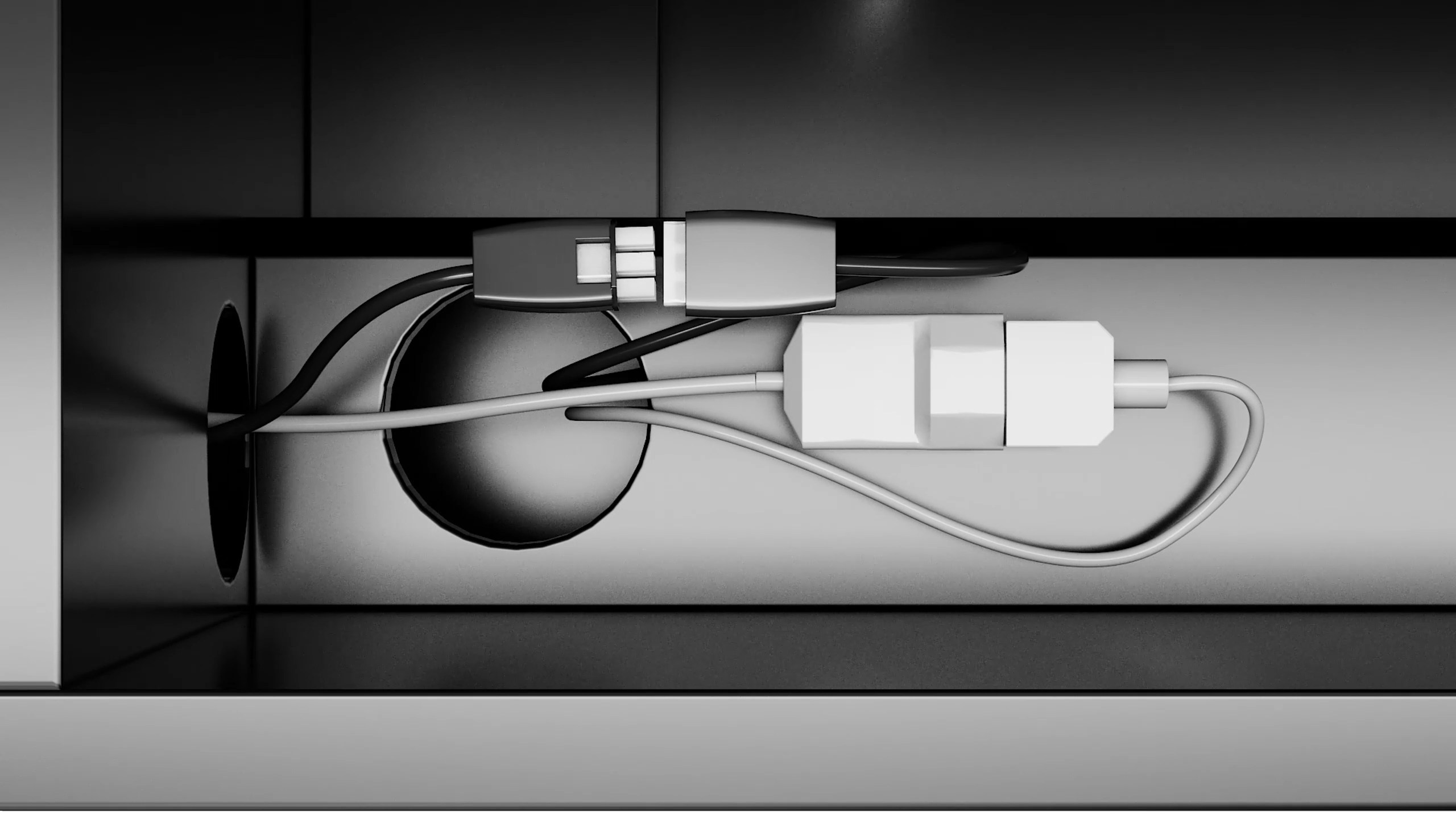

Integrated cable management
Pre-cut access holes between the side cabinets and centre section help organise power, HDMI and AV cables.
Clean installation
Cables can be routed through the cabinet, keeping the visible setup neat and furniture-like.
Finish Material Options
Standard Finishes & Bespoke Options
The MPC-F500 is available in a selection of furniture-friendly finishes. Bespoke colours and surface finishes are available on request.
- Natural Oak
- Walnut
- Black Wood Pattern
- Black Matt
- White Matt
- Custom finish on request

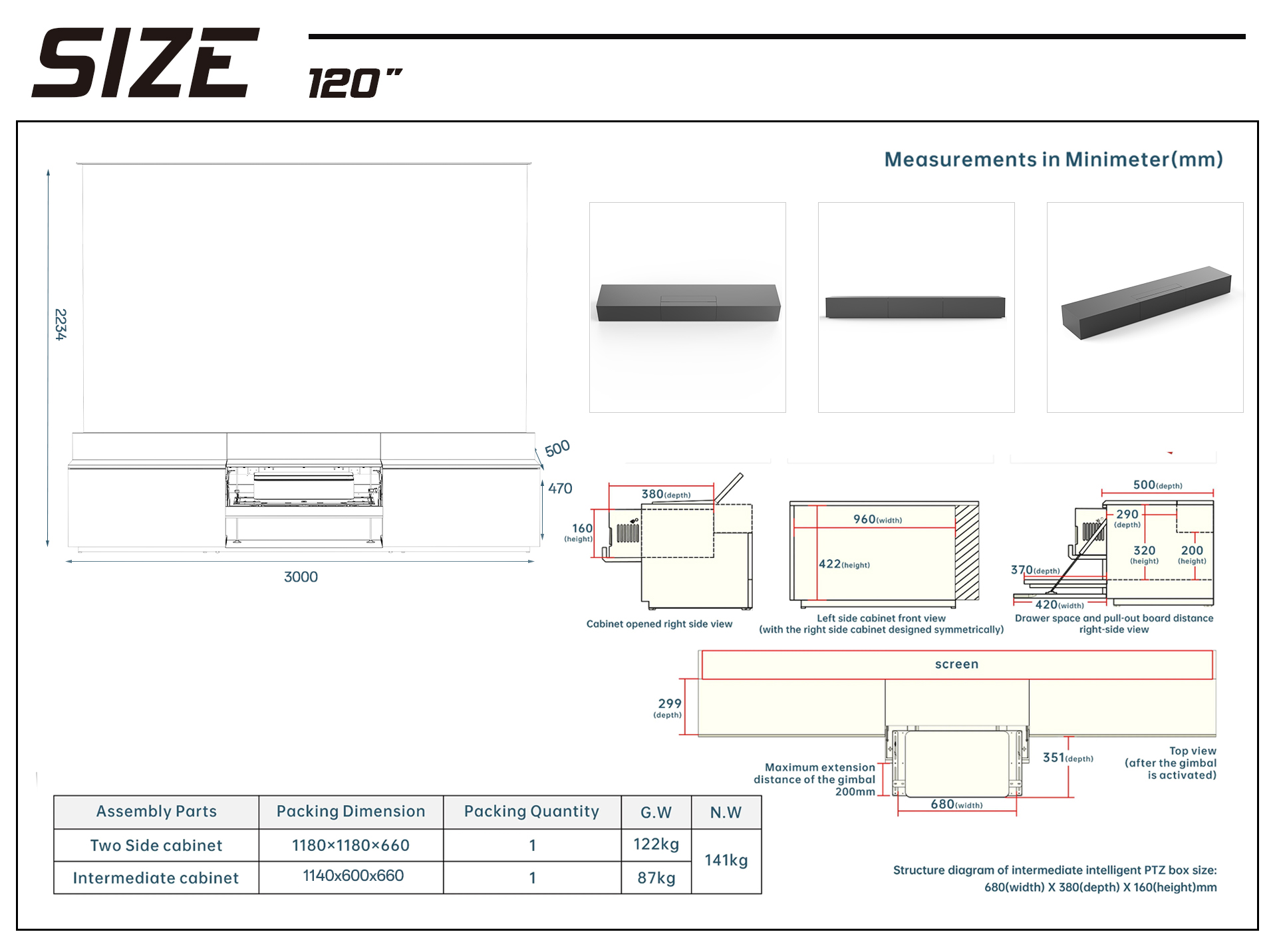

Dimensions & Standard Configurations
Product Dimensions
Standard cabinet dimensions for 100-inch and 120-inch floor rising screen configurations.
| Model | Intended Screen Size | Cabinet Width | Cabinet Depth | Cabinet Height | Configuration | Notes |
|---|---|---|---|---|---|---|
| MPC-500R-100 | 100" floor rising screen | 252 cm | 47 cm | 50 cm | Standard modular layout | Designed around a 100" floor rising screen |
| MPC-500R-120 | 120" floor rising screen | 300 cm | 47 cm | 50 cm | Standard modular layout | Designed around a 120" floor rising screen |
| Projector Bay | Projector fitting space | 68 cm | 38 cm | 16 cm approx. | Central rotating projector bay | Final compatibility depends on projector size, cable position and ventilation clearance |
| Custom Extended | 100" / 120"+ | By project | 47 cm | 50 cm | Additional side cabinet modules | Extended cabinet lengths available on request |
| Bespoke Compact | Below 100" | Review required | Review required | Review required | Custom engineered solution | Requires projector model and installation environment details for review |
Compatibility guidance: UST throw ratio 0.16:1 or above. The projector and floor rising screen must be powered through the cabinet system for synchronised operation.
Fully Hidden. Fully Integrated.
The MPC-F500 transforms a UST projector and floor rising screen into a clean, synchronised and furniture-integrated home cinema solution.
